CAD · SHADED

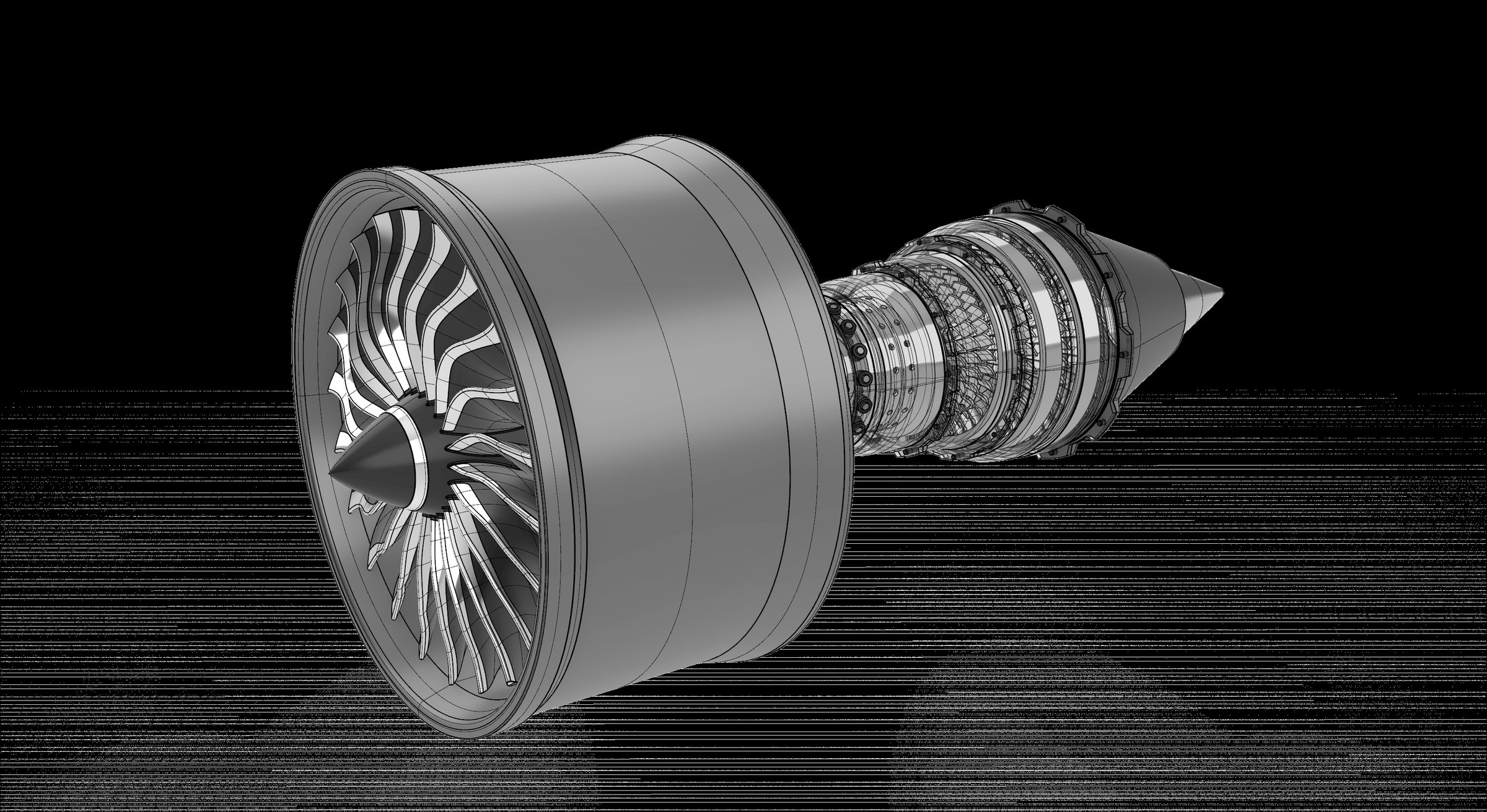

A high-bypass turbofan modelled for visualisation work with ICAO — full nacelle, fan, core and turbine stages built as a clean, render-ready CAD model carrying an “eco JET” mark.
A high-bypass turbofan engine modelled as a visualisation asset for ICAO. The brief was clarity: a complete powerplant — nacelle, fan, low- and high-pressure stages, combustor and turbine — readable in a single glance, clean enough to render hero stills and spin on a turntable.
The outer nacelle is kept calm and glossy so the eye reads the form, while a cutaway treatment exposes the spool and blade rows behind glass — with an “eco JET” graphic flagging the sustainable-fuel framing.
IDMR delivered the CAD model, the cinematic stills and the turntable animation in-house.
