Zeleros Batteries.

Product visualisation for the Zeleros battery systems line — pack architecture rendered in the open, and ghosted integration studies putting the same modular hardware inside a bus, a truck, a train, a boat, an aircraft and a hyperloop vehicle.

About the project

Making a sealed box legible.

A battery pack is, from the outside, a closed aluminium case. Everything that makes it worth buying — cell layout, busbar routing, cooling plate, the connector face — lives behind a lid nobody opens on a stand or in a deck. The commission was to open it without opening it.

Two registers run through the work. The first is hard product: the pack alone, lit clean, shot from above with the cover removed so the internal architecture reads as engineering rather than styling. The second is integration: the host vehicle ghosted back to a glass shell so the pack — and only the pack — carries the colour and the light.

The second register is what makes the line saleable. It answers the question a fleet buyer actually asks, which is not what is in the box but where does it go in my vehicle, and how many fit. Same asset, six sectors, one visual language.

The packs

Architecture, uncovered.

Product renders of the pack line — cover removed, modules and cooling laid bare, connector face shot close.

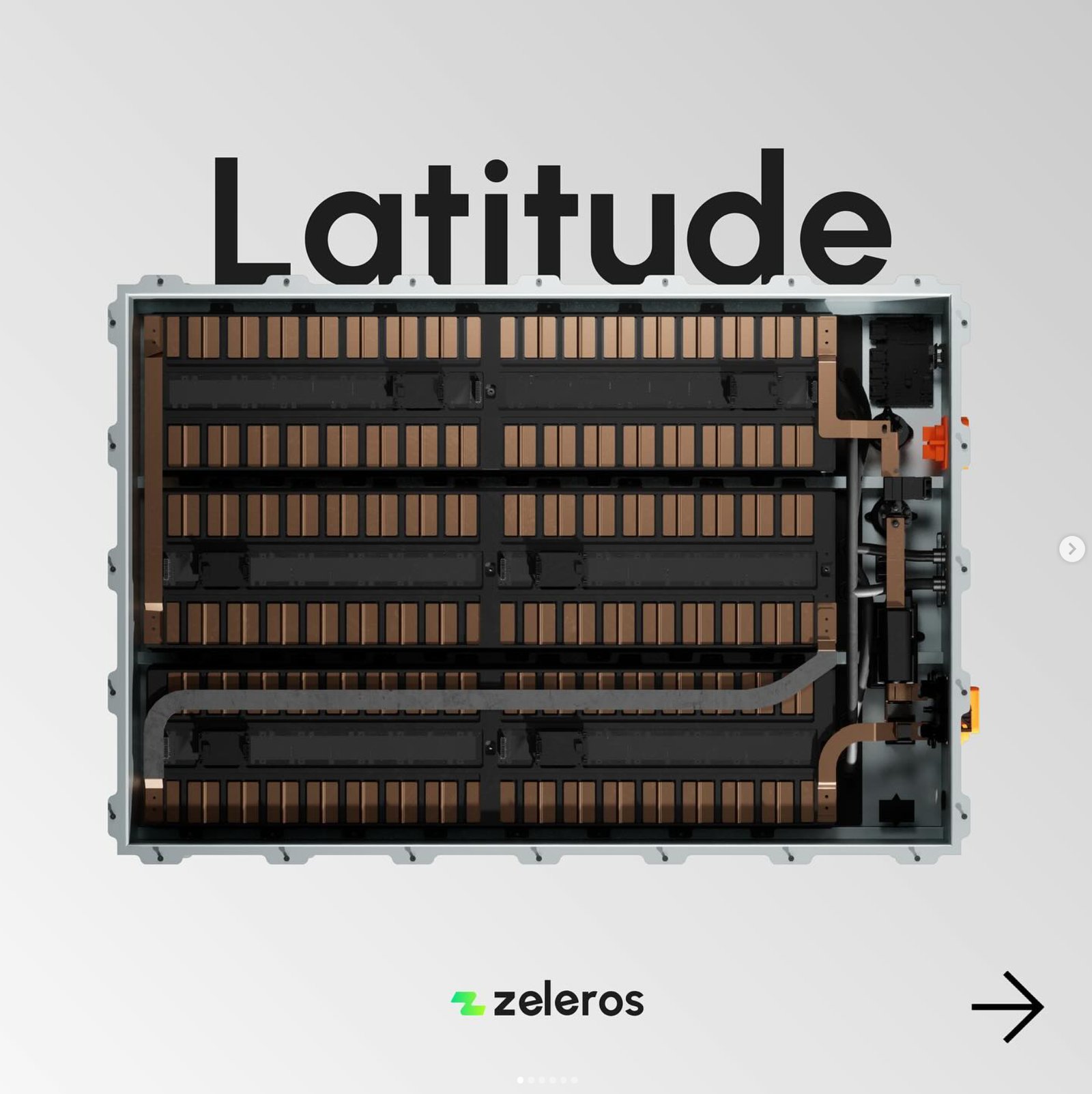

Zeleros Latitude battery pack, cover removed, showing module and busbar layout — **Latitude** Plan view with the lid off — module rows, busbars, cooling circuit and the HV interface in one frame.

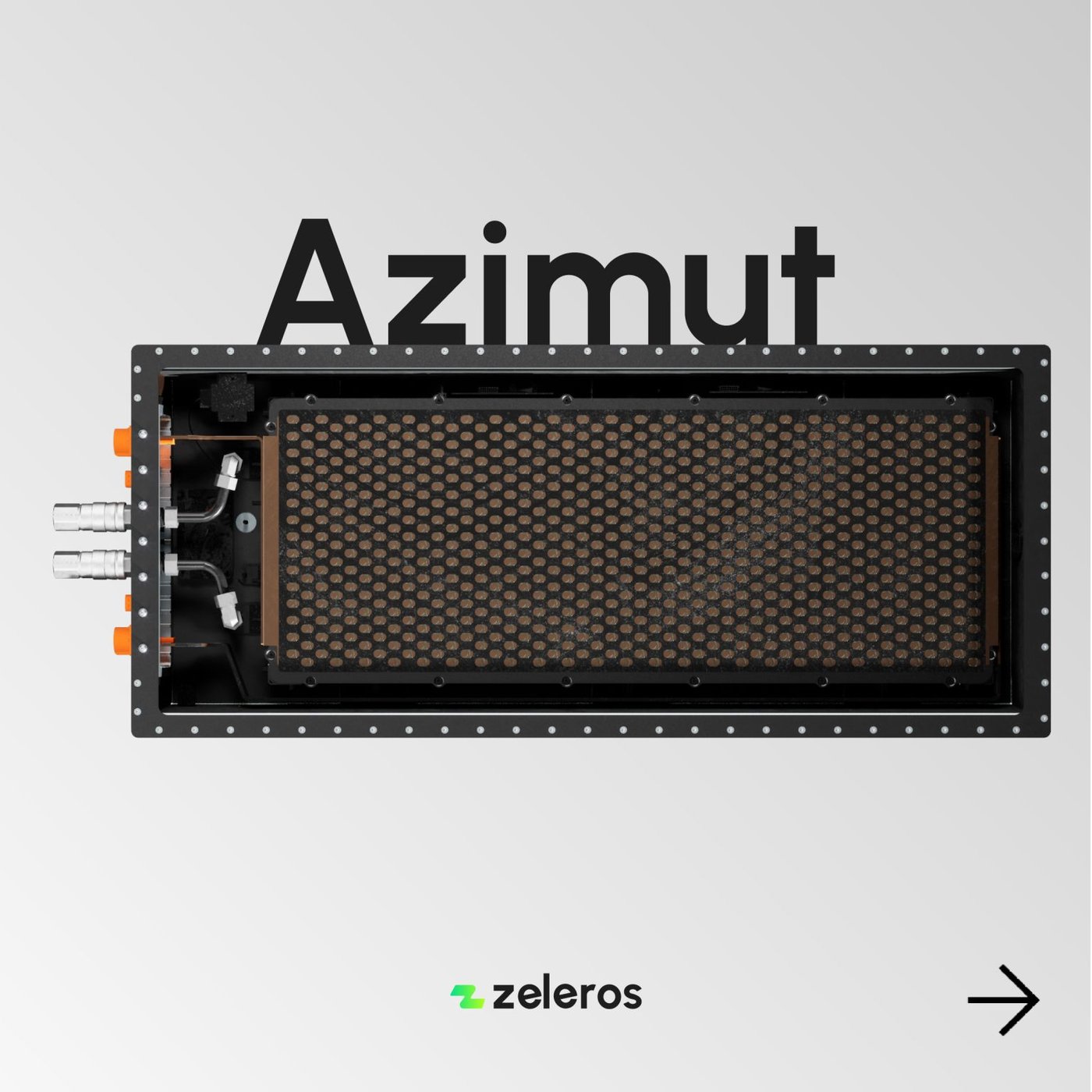

Zeleros Azimut battery pack showing cylindrical cell array and cooling plate — **Azimut** The narrower format, cell array and cold plate exposed against the same neutral studio ground.

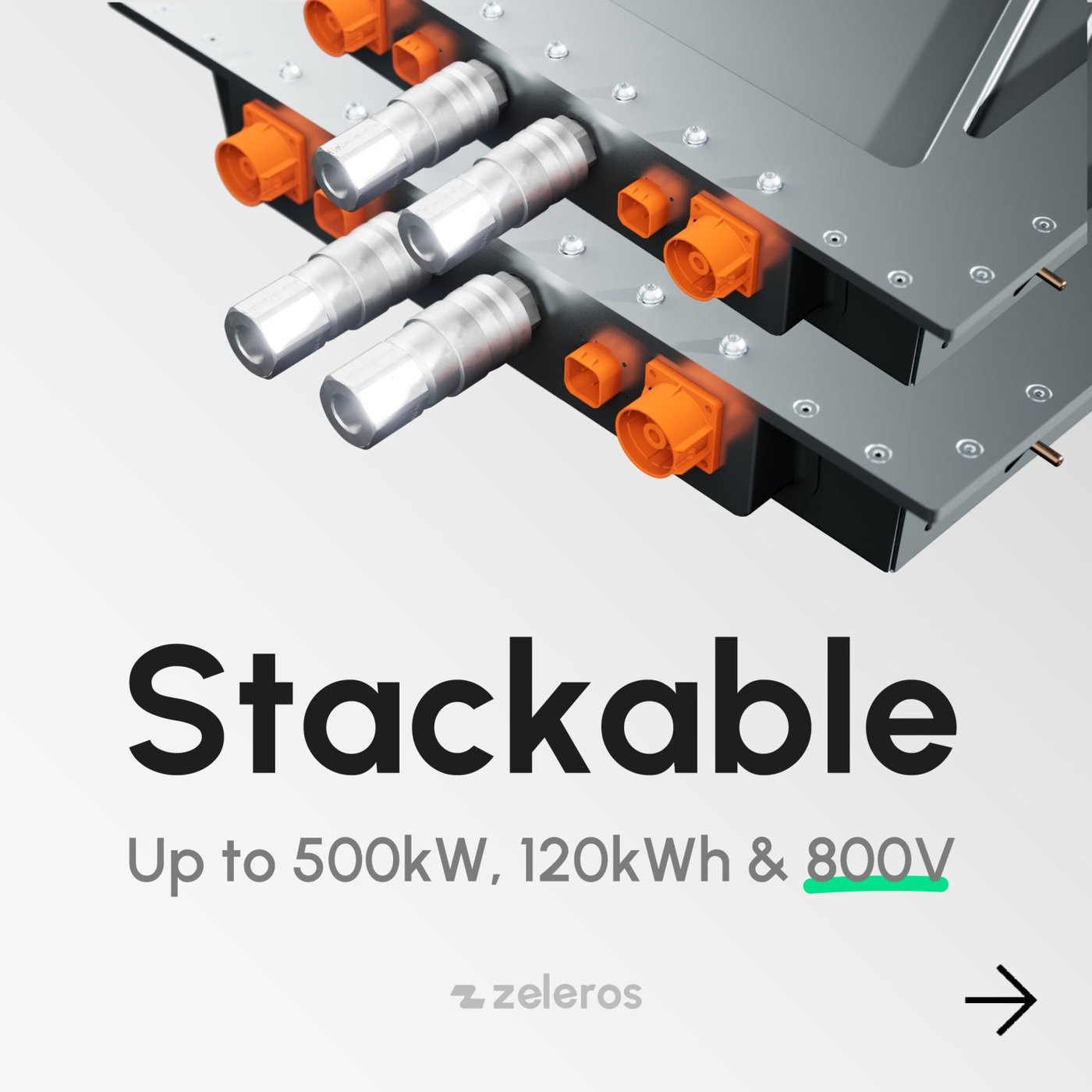

Close render of stacked Zeleros packs and their high-voltage and coolant connectors — **Stackable** Packs stacked to the campaign claim — up to 500 kW, 120 kWh and 800 V — with the HV and coolant couplings held in focus.

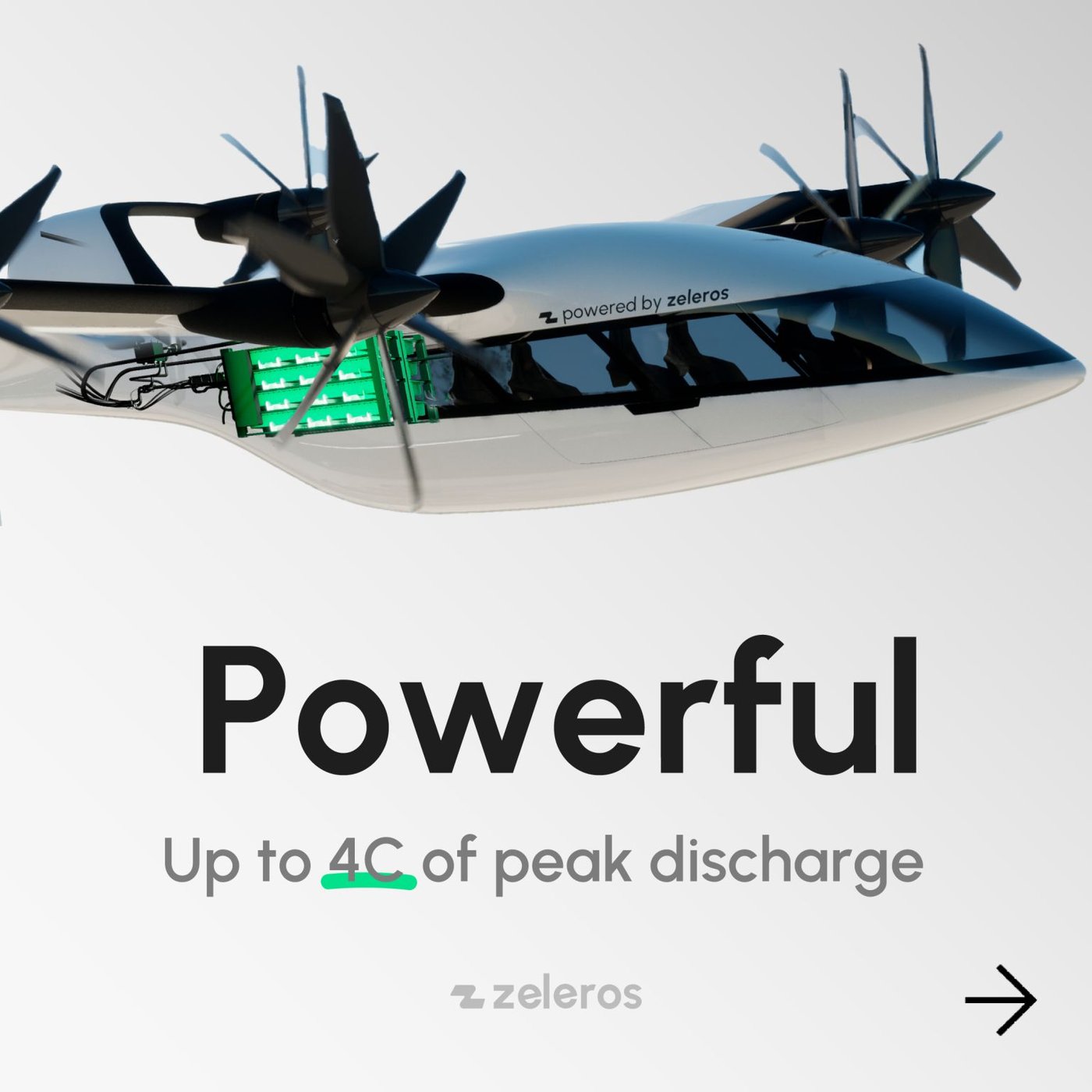

Zeleros pack integrated into an eVTOL airframe render — **Powerful** The aviation case — modules carried in a tilt-rotor airframe, to the 4C peak-discharge claim.

Integration

One pack, six vehicles.

Ghosted cutaways. The host vehicle drops to a glass shell; the battery and driveline stay solid and lit, so the eye lands on the hardware being sold rather than the vehicle around it.

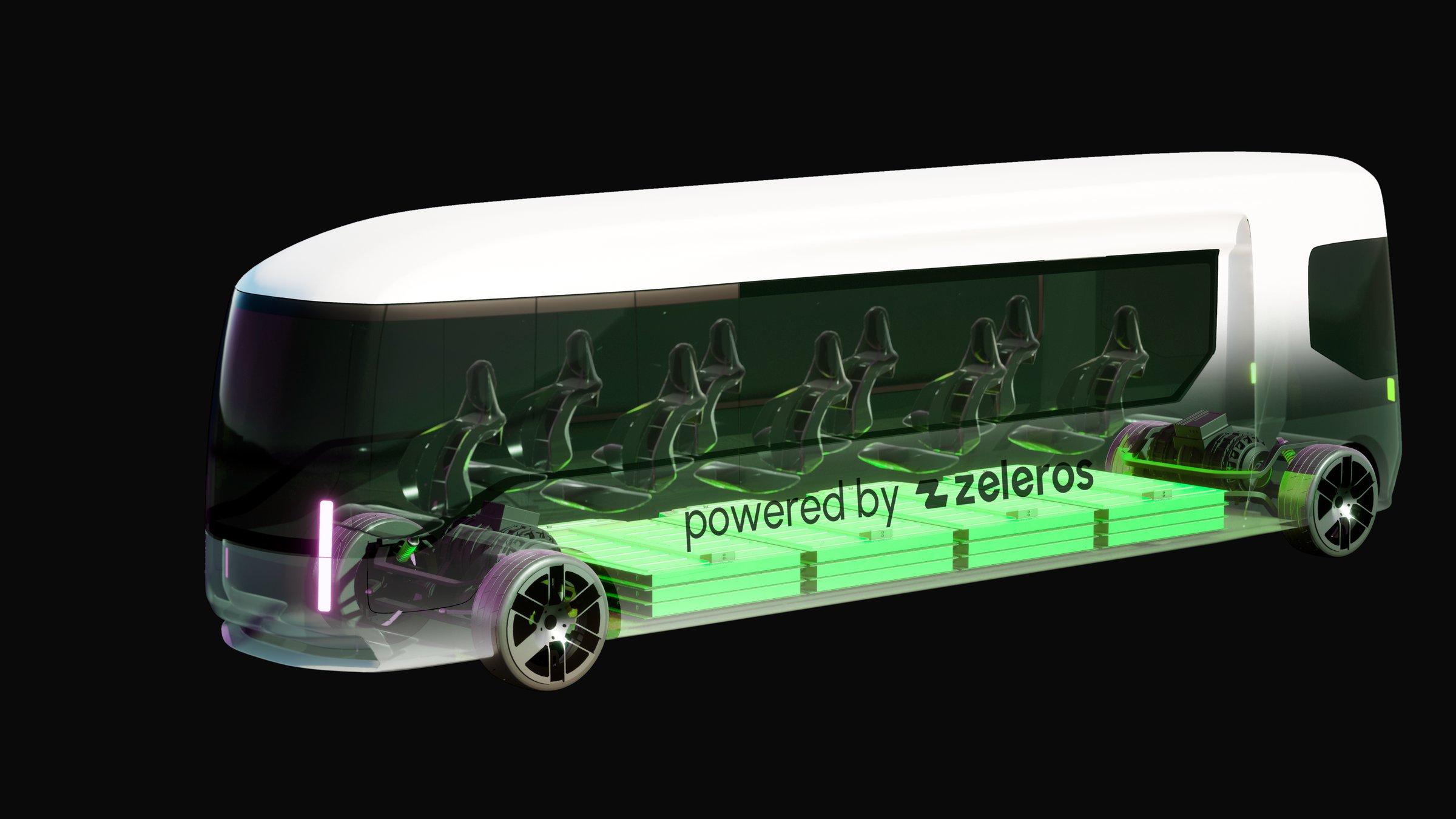

Ghosted electric bus showing floor-mounted Zeleros battery packs — **Bus** Packs laid flat under the aisle, driveline at the rear axle — the layout that decides usable floor height.

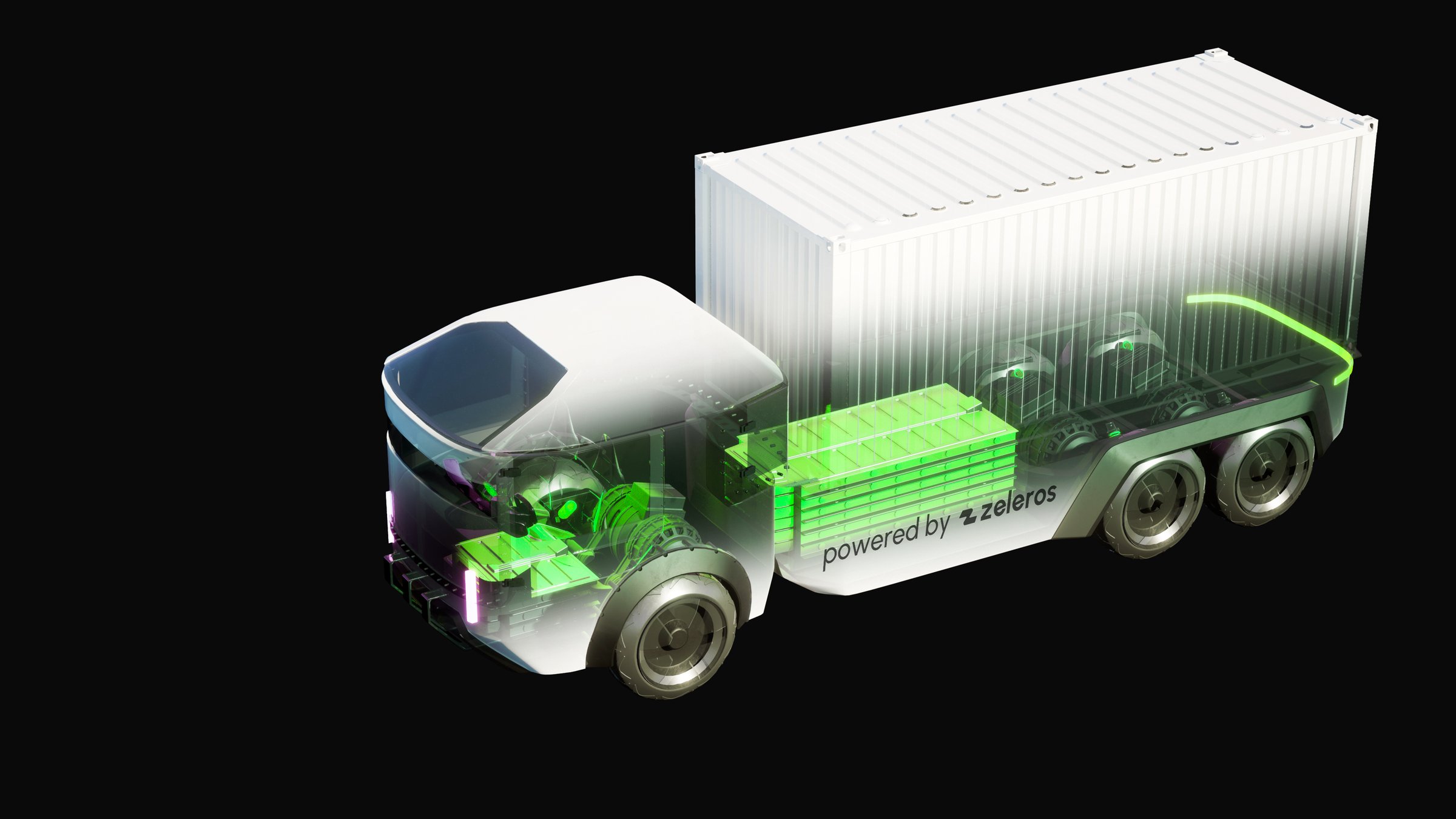

Ghosted electric semi-truck with container, showing chassis-mounted battery packs — **Truck** Chassis rails carrying stacked modules between cab and bogie, container in place for scale.

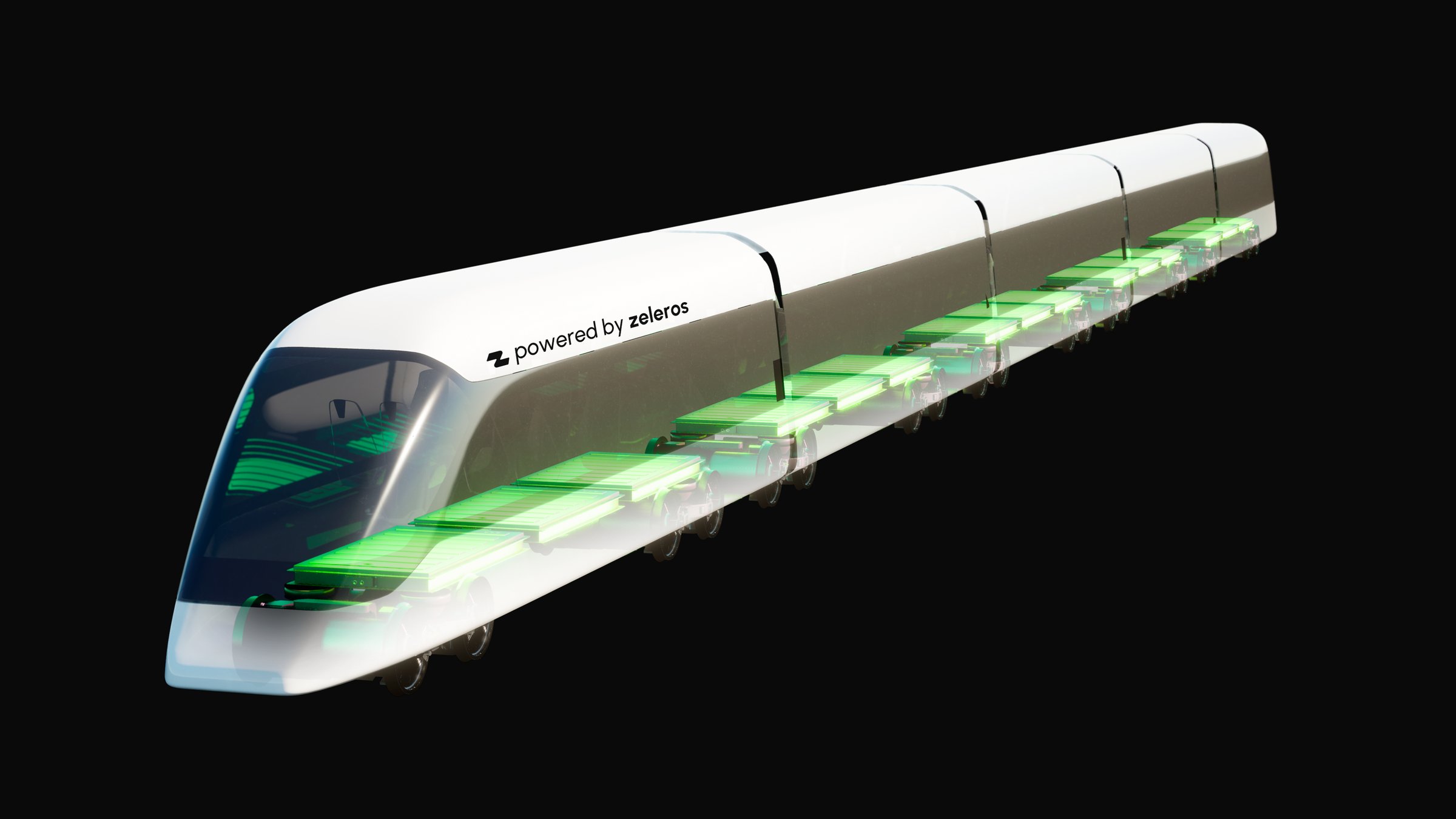

Ghosted battery-electric train showing underfloor packs along the consist — **Rail** Underfloor packs repeating the length of the consist — the same module, multiplied.

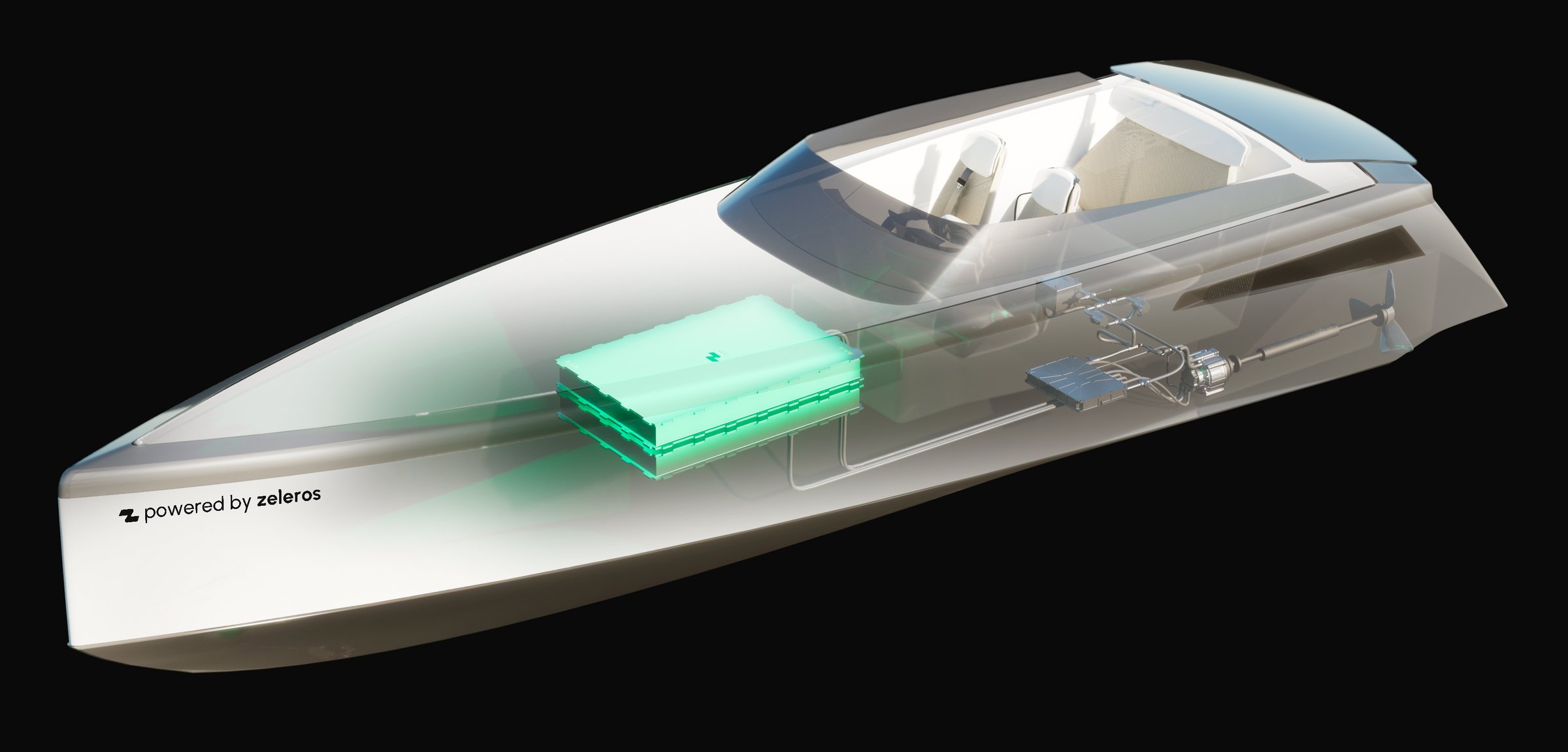

Ghosted electric dayboat showing a stacked battery pack amidships — **Marine** A stack set low and amidships, shaft line and inverter running aft to the propeller.

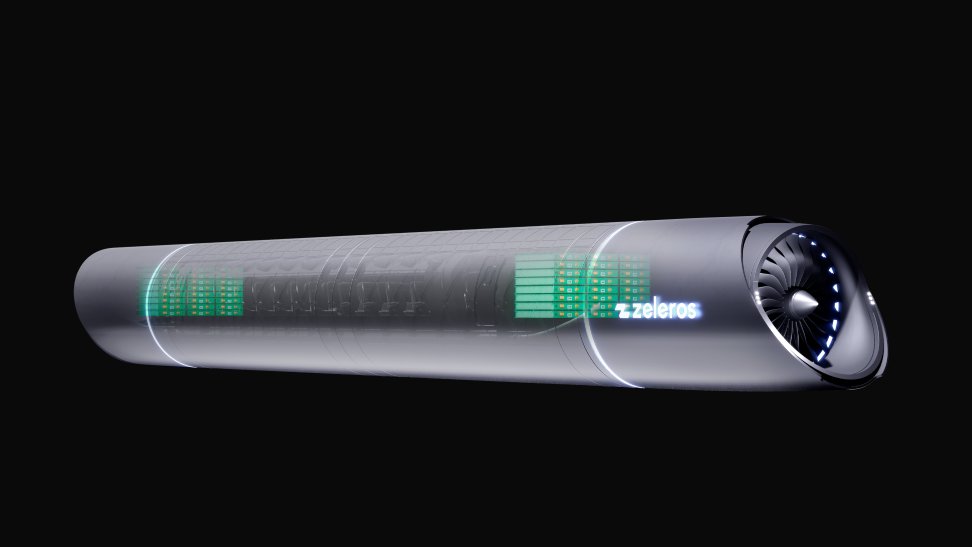

Zeleros hyperloop vehicle with onboard battery modules visible through the shell — **Hyperloop** Back to where the company started — onboard energy inside the vehicle shell, compressor at the nose.

Electric bus powered by Zeleros batteries driving through a city — **On the road** The same bus put back in the world — pack still visible through the skin, motion carried by the plate line.

Film

The line, in motion.

Two short pieces produced alongside the stills — product and identity animation for the pack families.

FILM · PRISMIA

Prismia Product film for the Prismia pack (press play).

FILM · AMPERIA

Amperia Identity animation for the Amperia line (press play).
