Zuka wood-fired cookstove — two pots on the cooktop, chimney and branded pine facia
Team Project · FADU Buenos Aires

Zuka

A two-burner wood-fired cookstove that gets the most out of every log — designed, welded and cooked on.

Discipline
Industrial / Product — cookstove
Context
FADU, UBA — Cátedra Rondina (team of 9)
Year
2015
Outcome
Built & field-tested prototype
01 — Overview

Get the most
out of every log

Zuka is a two-burner cookstove that maximises the use of firewood — clean, efficient heat from a rocket-type combustion chamber.

The identity comes from two materials in conversation: steel and wood. Metal reads as the technology and draws the line of the design; the pine is the everyday material that brings warmth to the whole. It's a versatile kitchen that adapts to different households, where the design lives alongside the everyday as one piece — quietly raising the quality of daily cooking.

Zuka was a nine-person team project under Cátedra Rondina at FADU (UBA) — with Camila Piantanida, Federico Kakazu, Maximiliano Schivo, Florencia Di Salvo, Lucila Leone, Alejandra Fernández, Sofía Piazza and Juan Policastro — taken from Rhino models through hand fabrication to a working stove that cooked eggs, burgers and stew in the field.

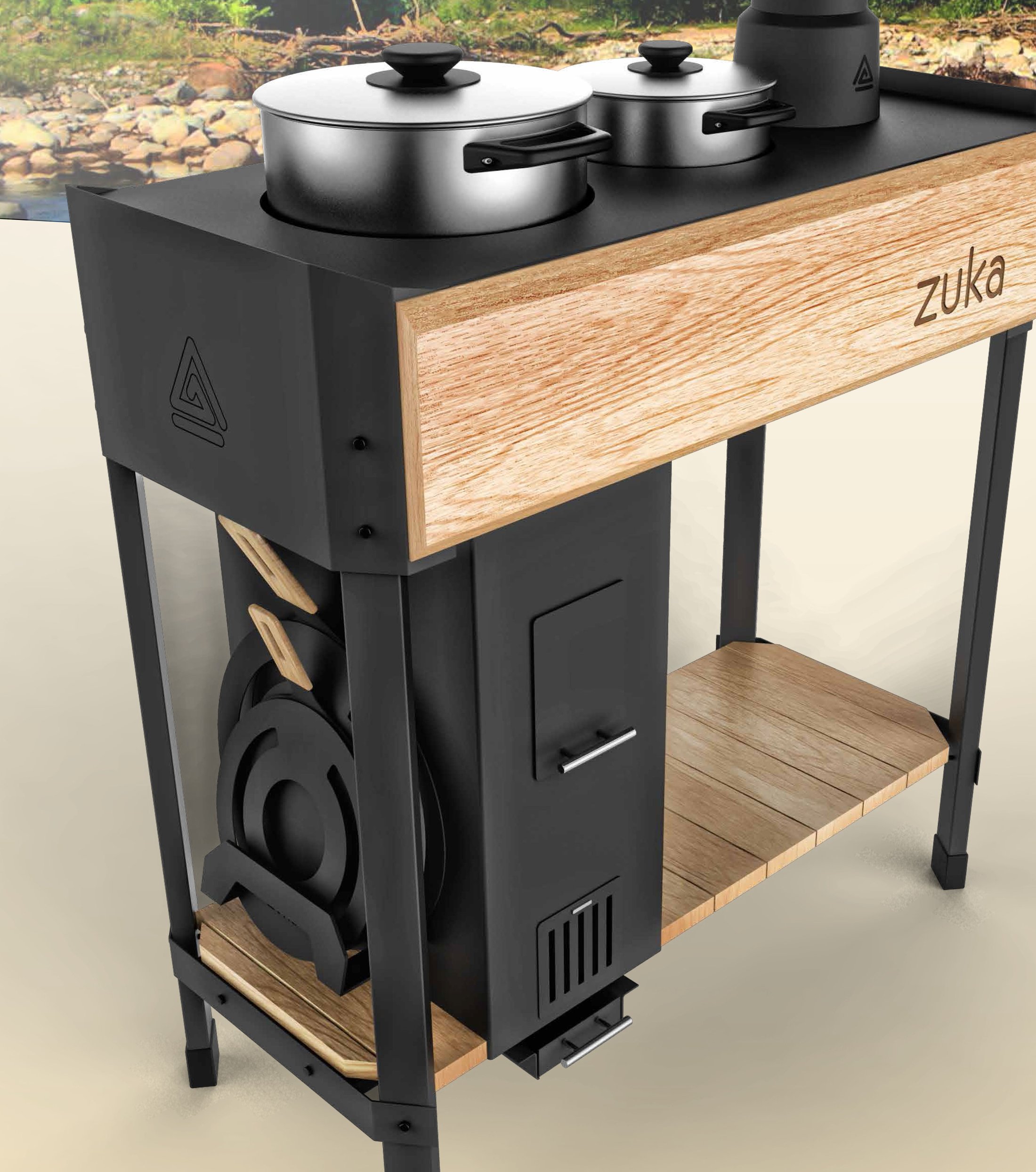

Studio render of the Zuka cookstove — steel body, impregnated pine cladding, lower shelf with accessories
Steel 1010 · oven-baked paint · impregnated pine Render — Rhinoceros / KeyShot
02 — How it works

Rocket combustion,
regulated air

A rocket-type combustion chamber burns wood hot and clean: air is drawn through a controlled intake into an insulated vertical chamber, so the fire reaches high temperature and combusts more completely — more heat, less smoke, less wood.

A regulable O₂ intake lets the cook tune the burn; glass-wool insulation keeps the heat where it's wanted; and the hot gases sweep beneath the two cooktop plates before leaving through the flue (salida de tiraje).

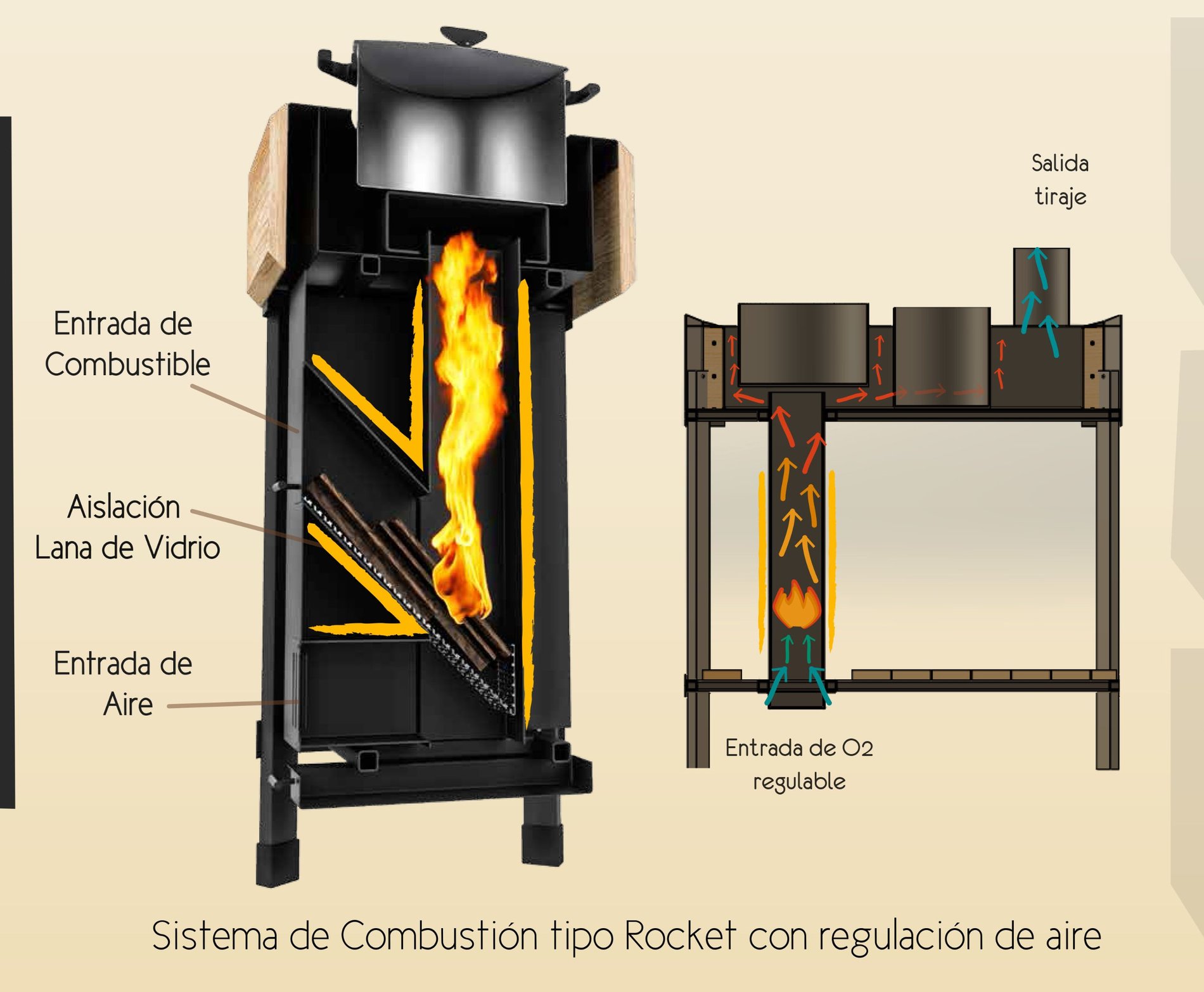

Cutaway diagram of Zuka's rocket-type combustion with airflow, fuel intake, glass-wool insulation and flue
BURNERS
2 hornallas
Two plates for effectiveness & versatility
COMBUSTION
Rocket
High-temp chamber with regulated air
STRUCTURE
Steel 1010
Oven-baked paint finish
CLADDING
Pine
Impregnated, waterproofed — warmth & touch
ERGONOMICS
80 cm
Work height tuned for daily standing use
AIR
O₂ reg.
Adjustable intake to control the burn
ASH
Removable
Slide-out ash tray, easy access
KIT
Ø24 / Ø18
Pots, adapter & plancha/lid accessories
03 — From CAD to weld

Modelled,
then made by hand

Modelled in Rhino, then cut, bent, welded and finished by the team — the chimney, combustion box, sheet-metal ash pan and the branded pine cladding all fabricated from scratch.

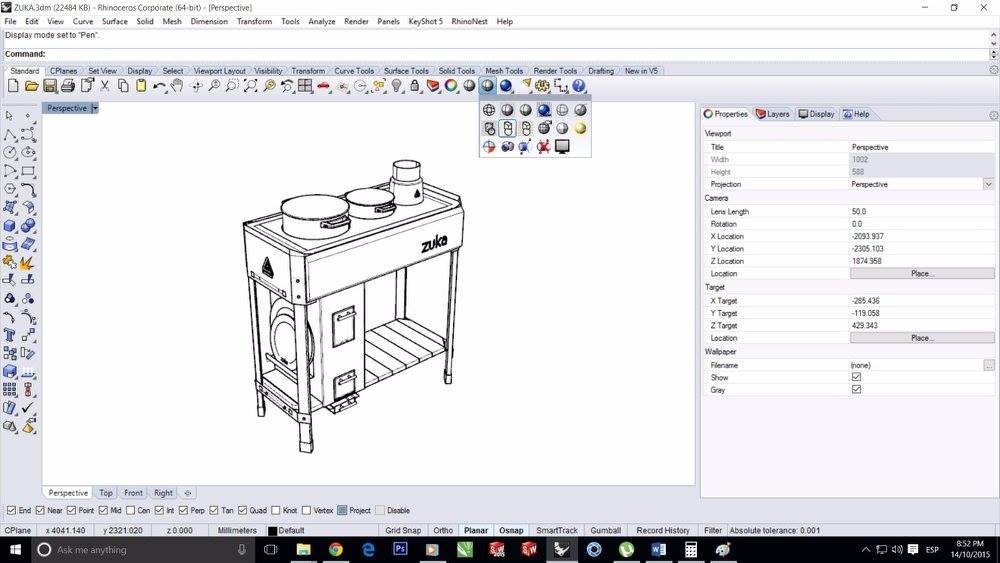

Rhino model of Zuka
Rhino — full assembly

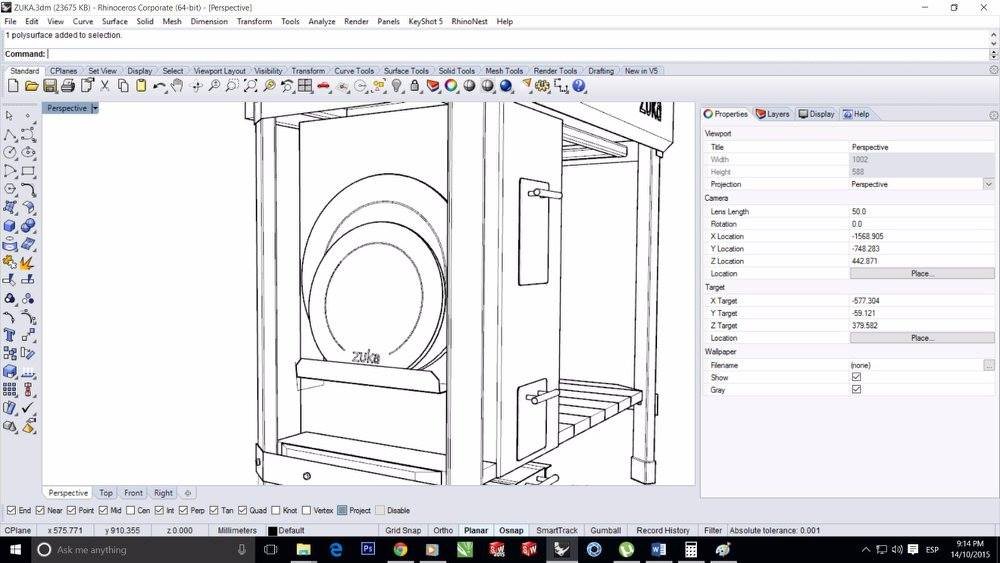

Rhino wireframe detail
Rhino — chamber detail

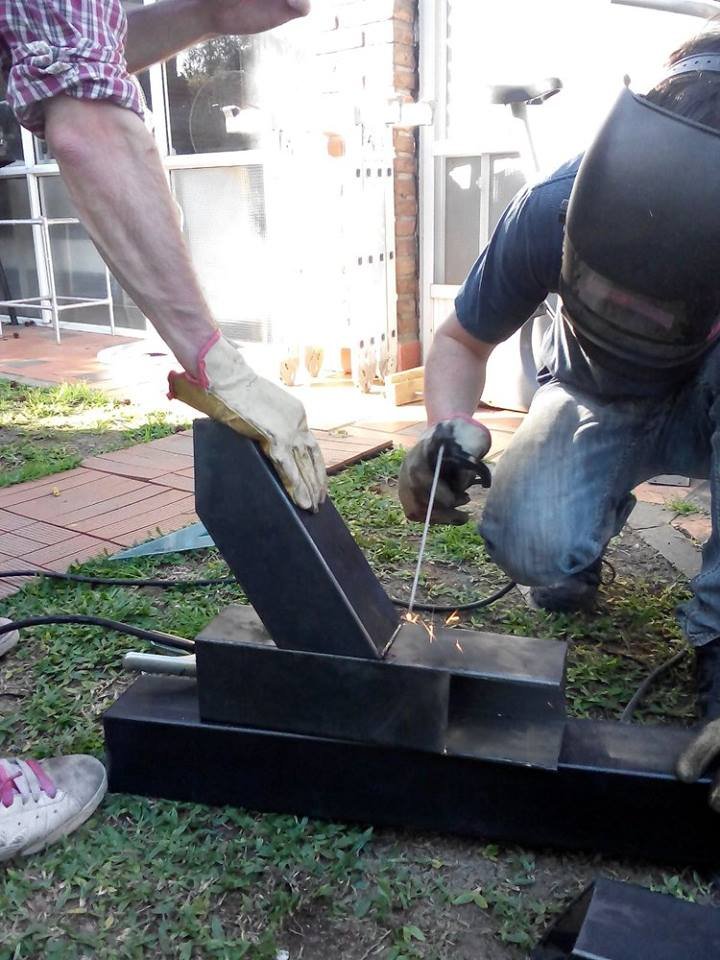

Welding the combustion box
Welding the box

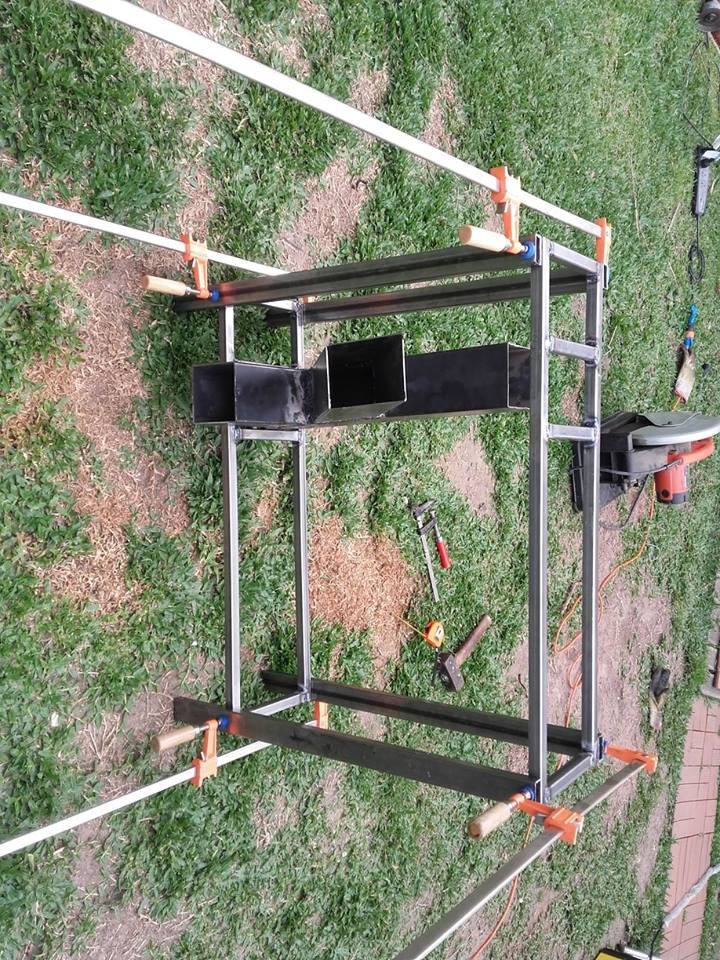

Steel frame clamped during assembly
Frame jig & clamp-up

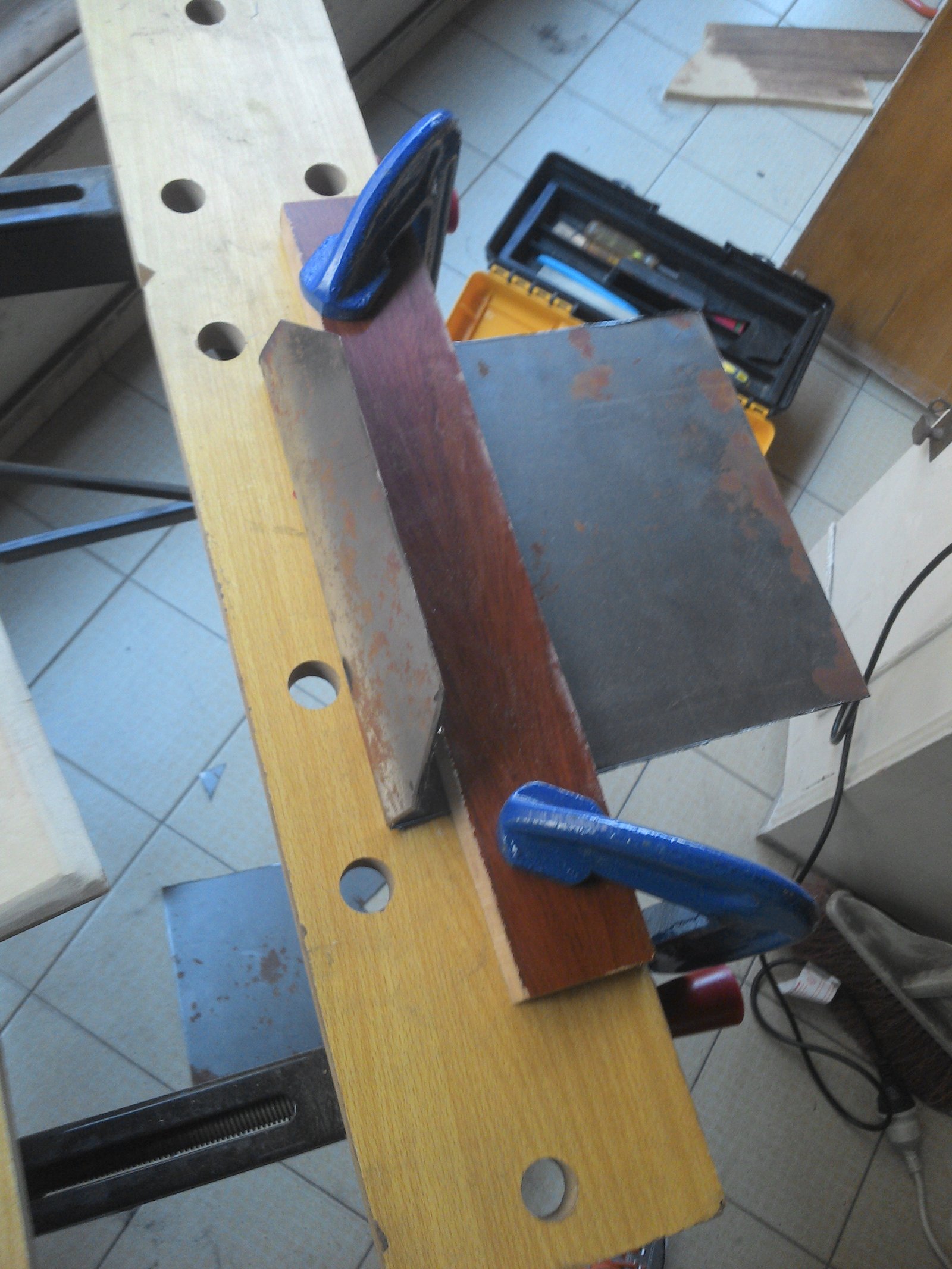

Bending sheet steel on the bench
Sheet-metal fab

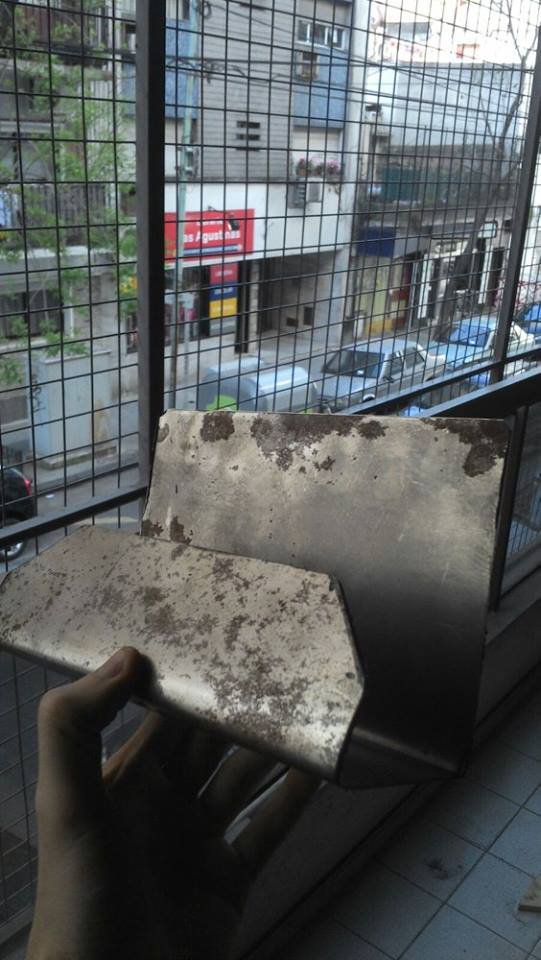

Folded sheet-metal ash pan
Ash-pan part

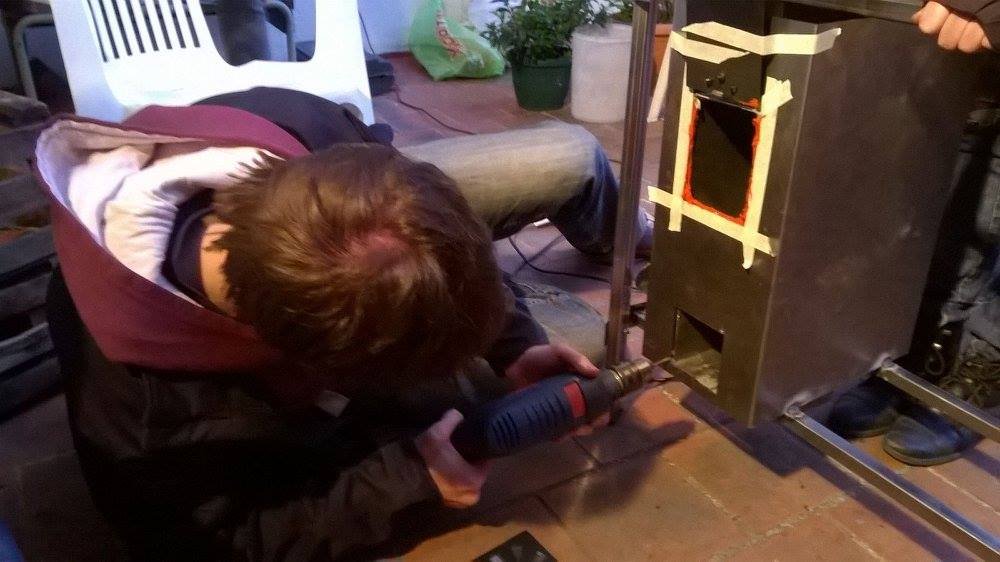

Finishing and sealing the painted body
Finishing
Zuka logo engraved into the pine cladding
Branded pine
04 — It works

Cooked on, in the field

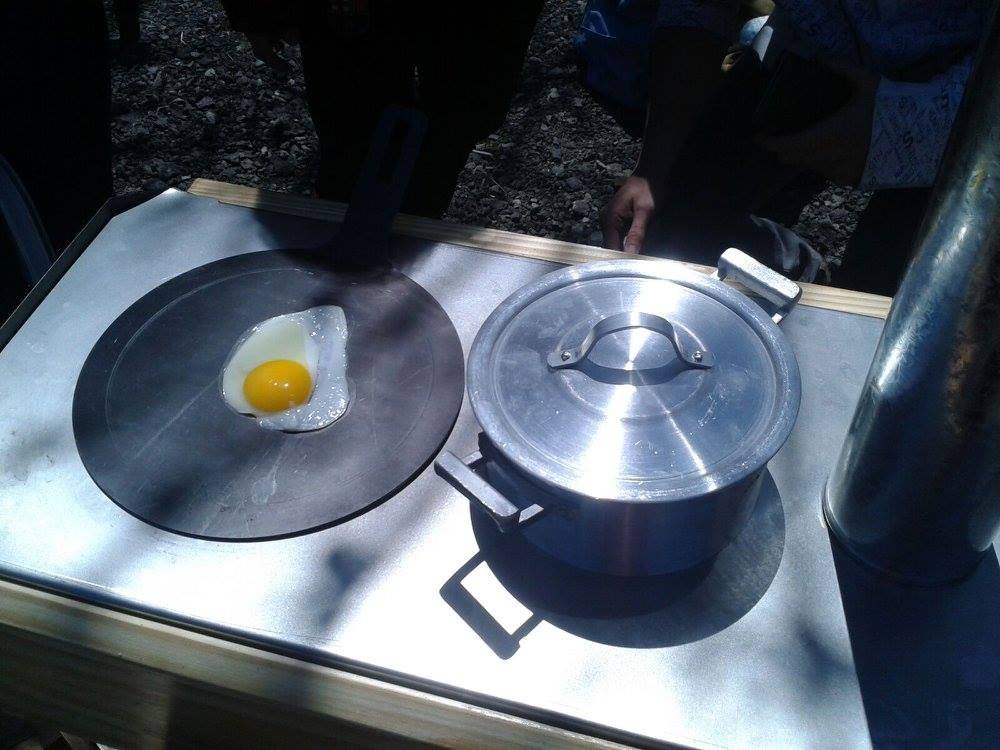

Frying an egg and a pot simmering on the Zuka cooktop
Egg on the plate, pot alongside

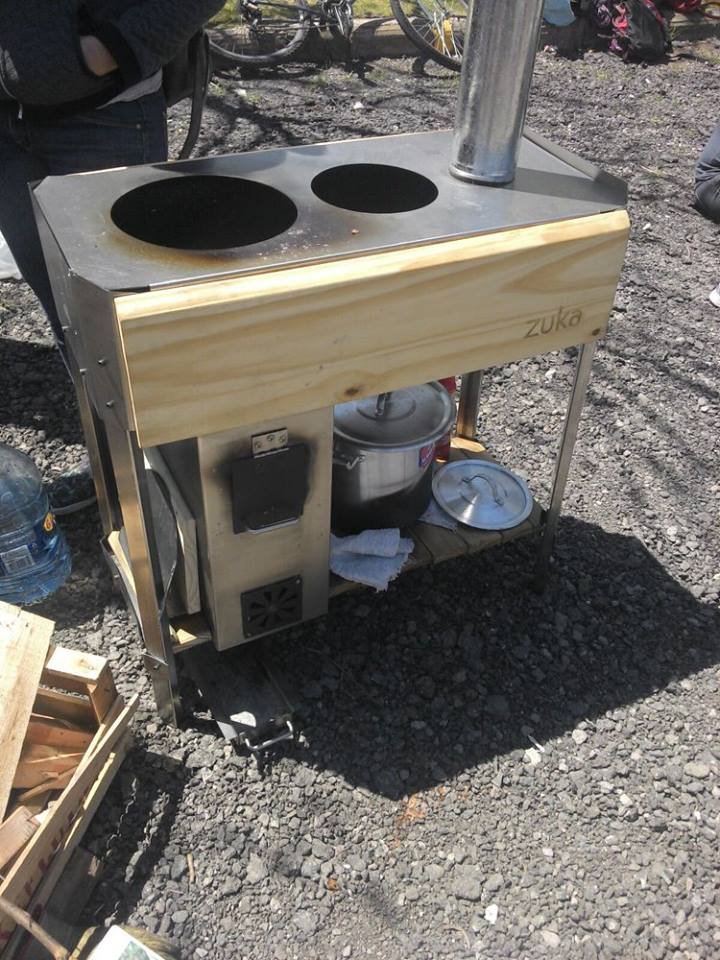

Front view of Zuka in use, pot on lower shelf
In use

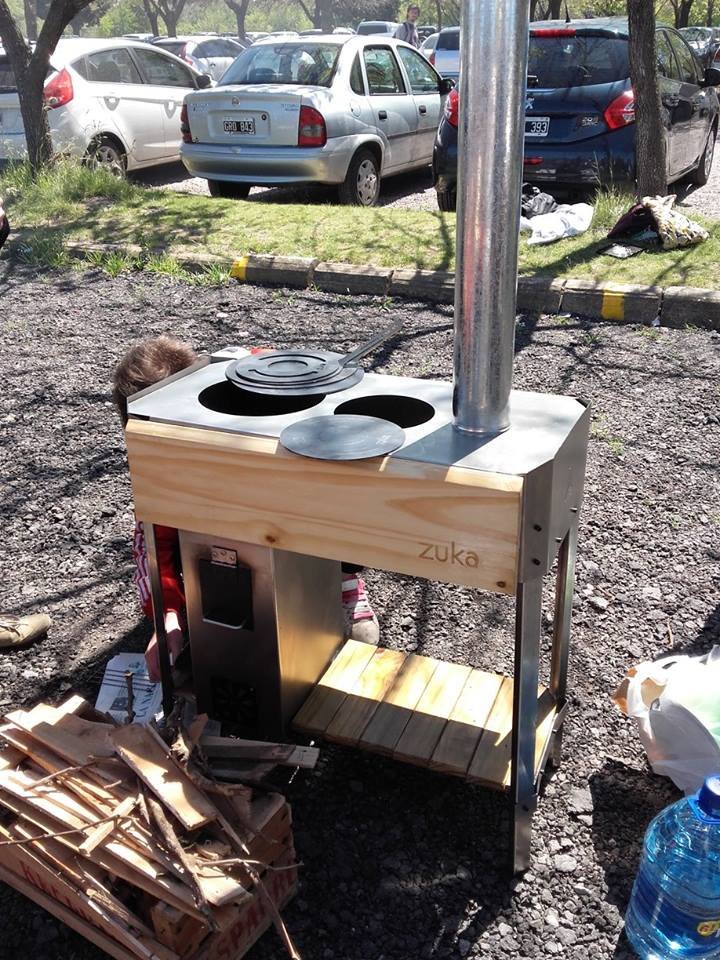

Zuka beside a stack of firewood
Fuelled by scrap wood
05 — Presentation

Final boards

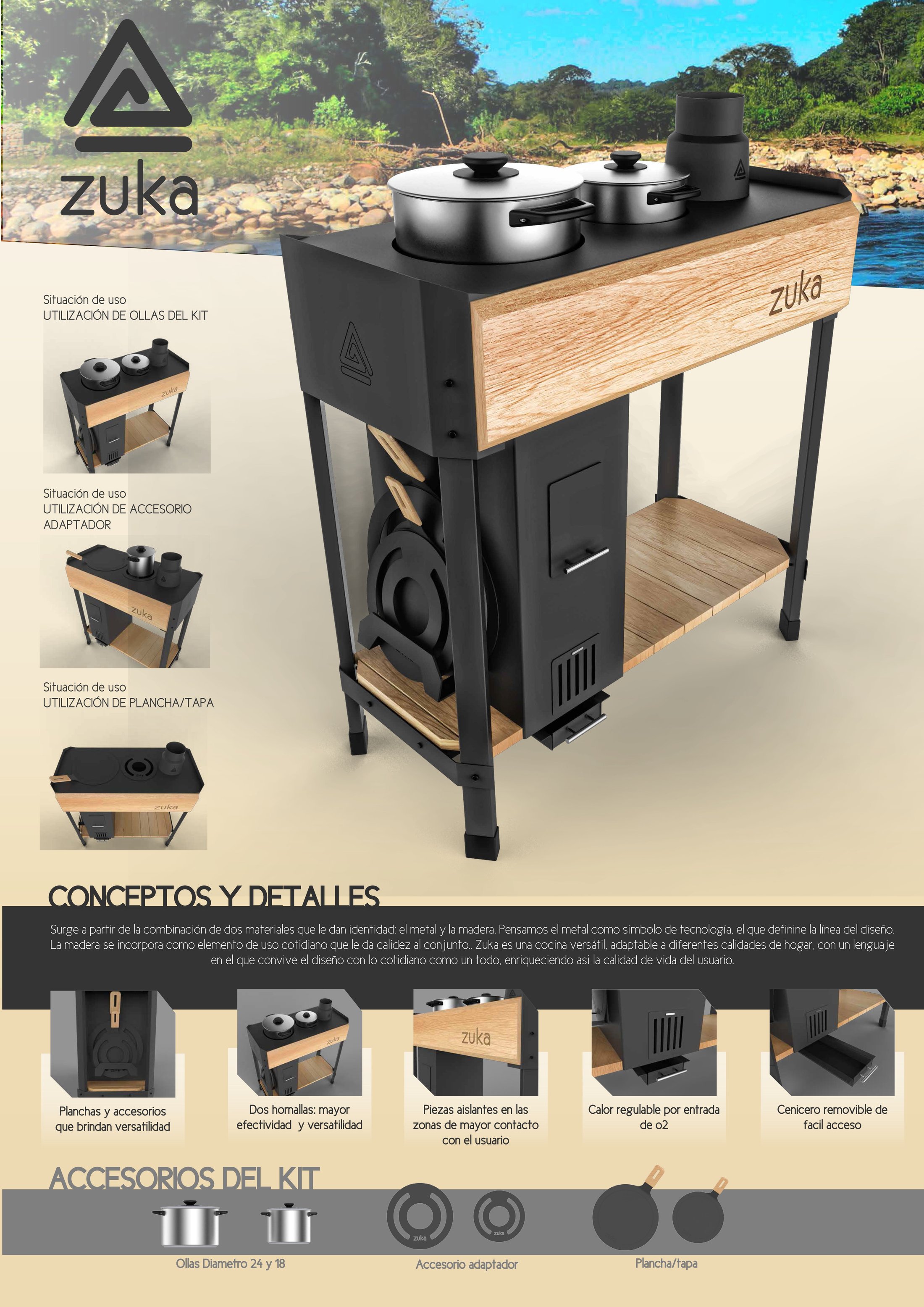

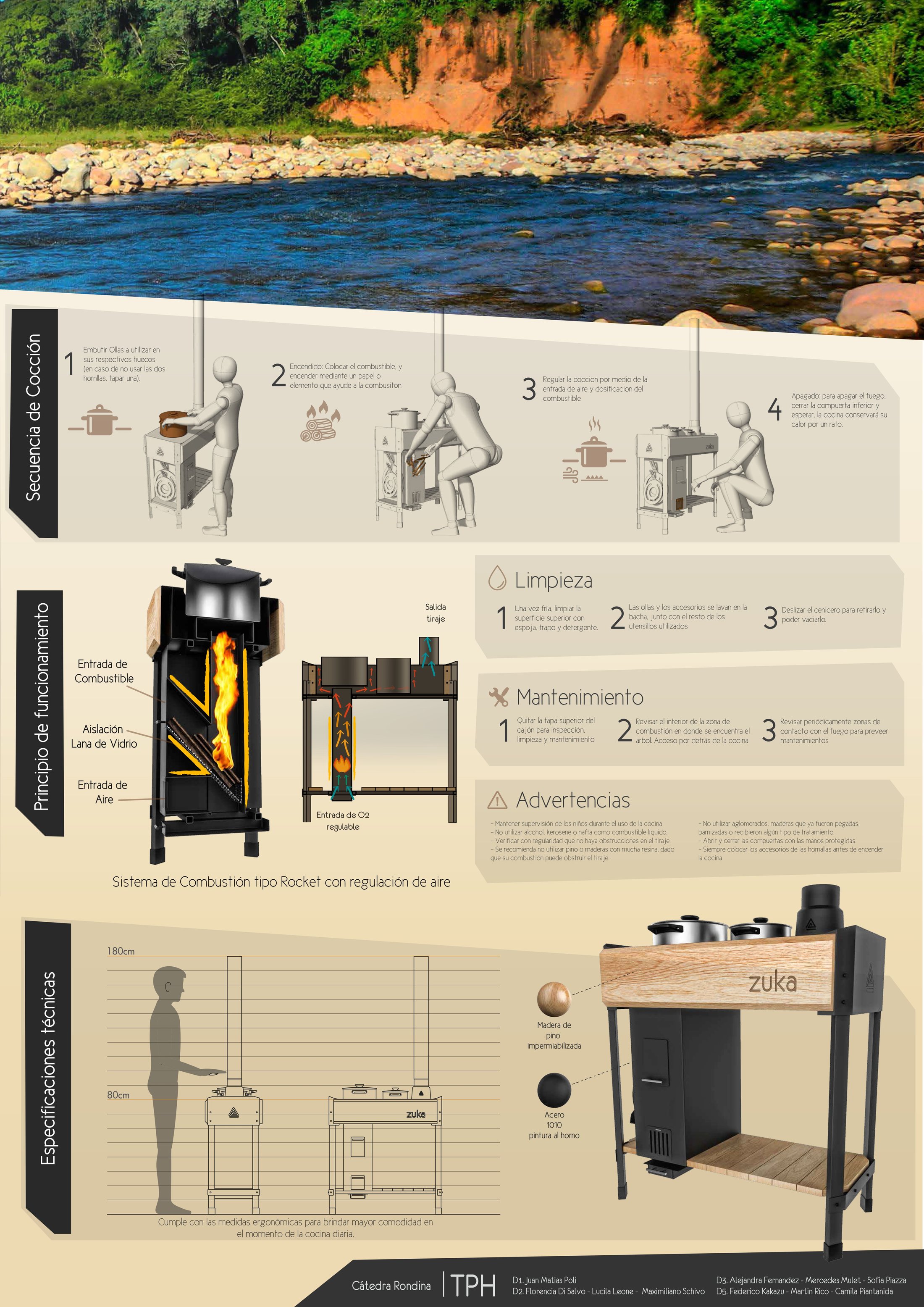

Zuka final presentation board 1 — concepts, details and kit accessories Zuka final presentation board 2 — cooking sequence, combustion principle and technical specs
Final delivery boards · Cátedra Rondina (ES) · tap to open full size
